Shreddo 5 / FPV freestyle frame

Shreddo 5 FPV freestyle frame

Alien-sauce durability for pilots who hit concrete for fun. The Shreddo 5 is built as your last 5-inch freestyle frame: brutally tough, versatile to build, and born for hard bando sessions.

Build your order See specs

Current frame

Shreddo 5

Unmatched durability, smart carbon thickness, and a TPU camera cage that lets you fit almost any FPV camera without turning the front end into a compromise.

Why it survives

Simple, strong plates

6 mm arms

Reinforced around the body where the impact loads concentrate, while keeping the outer arm shape clean and purposeful.

3 mm bottom plate

Built to handle hard frontal impacts and keep the core protected when the line gets spicy.

2 mm top and mid plate

Tight, serviceable, and stiff without adding dead weight where it does not help.

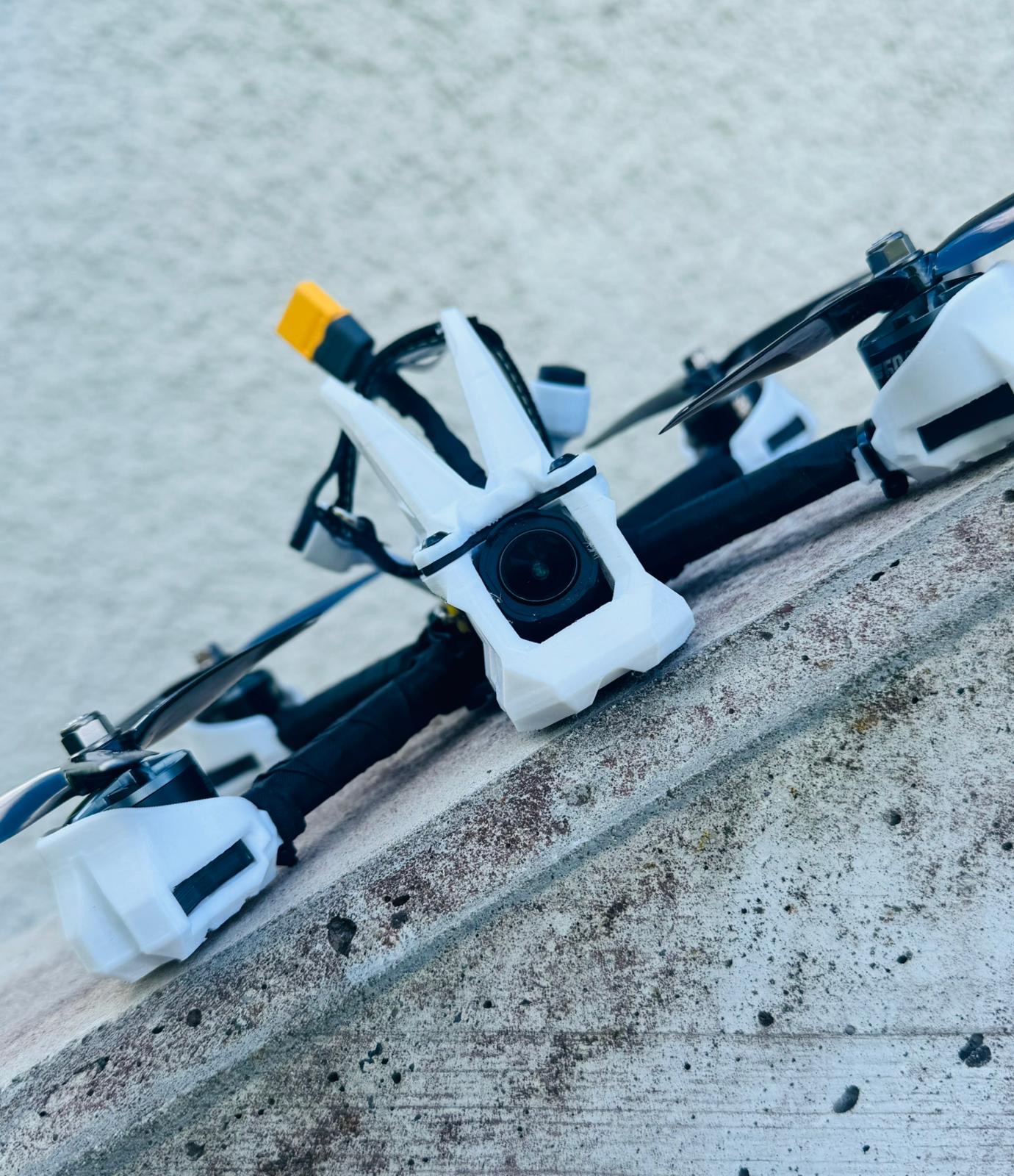

TPU camera cage

Interchangeable camera-side plates make room for almost any FPV cam you want to run.

Hard specs

Built to take hits

Geometry: 80 degree Squashed-X Geometry
Wheelbase: 225 mm
Dry weight: 160 g
Carbon: High quality T700 Carbon Twill
Arms: 6 mm
Bottom plate: 3 mm
Top and mid-plate: 2 mm
Standoffs: 6 mm aluminium
Stack: 30.5 x 30.5 mm and 20 x 20 mm, max. 20 mm height
Camera: Max. 20 mm width, printable side plates for most DJI and analog FPV cameras
VTX mounting: 20 x 20 mm and 25.5 x 25.5 mm patterns
Coming soon: True-X arms

Shreddo 5 frame kit contents with carbon plates, screws, nuts, standoffs, and battery pad

What is included

What is in the box

The Shreddo 5 frame kit ships with the hardware you need for the carbon frame.

Included

Carbon parts
All necessary screws and nuts
7075 aluminium standoffs
Silicone battery pad

Needed to complete

TPU parts
Battery strap

Open build guide

Design video

Why it is shaped this way

A closer look at the design choices behind the Shreddo 5 frame.

Print and repair

Full TPU kit ready to download

TPU parts are not included in the carbon frame kit. You need a 3D printer to complete the build, including the camera mount.

Print the parts at home and replace them whenever needed.

Double Horn remix based on Kayoudur / Kayouflip Double Horn LiPo Guard by Grimka, used under CC BY 4.0. Modified with an adjusted base plate to fit the Shreddo frame.

Download TPU files

Before you order

Know what you need

Frame kit only

TPU parts and the battery strap are not included. Please download the TPU files and print yourself.

Compatibility

The camera mount uses printable TPU side plates. Files are available for common DJI and analog FPV cameras. Missing your camera? Contact me and I can design a fitting mount.

Not included

Electronics, props, motors, camera, VTX, receiver, action cam mount, and LiPo battery are not part of the carbon frame kit.

Order

Shreddo 5 frame kit

Frame Kit: CHF 80. Worldwide shipping starts at CHF 10 and scales with the number of frame kits. Set the frame kit to 0 if you only need spare carbon plates.

Please be aware that every order is produced individually. Production and shipping time is usually around 3 weeks.
